Antibacterial Activity of Essential Oils Extracts from Cinnamon, Thyme, Clove and Geranium Against a Gram Negative and Gram Positive Pathogenic Bacteria

S. Oulkheir^{1, *}, M. Aghrouch², F. El Mourabit¹, F. Dalha¹, H. Graich¹, F. Amouch¹, K. Ouzaid¹, A. Moukale³, S. Chadli¹

¹High Institute of Nursing Professions and Health Techniques, ISPITS, Agadir, Morocco

²Laboratory of Medical Analysis, Hospital Hassan II, Agadir, Morocco

³Faculty of Science, Ibn Zohr University BP 8108, Agadir, Morocco

Email address:

(S. Oulkheir)

^*Corresponding author

To cite this article:

S. Oulkheir, M. Aghrouch, F. El Mourabit, F. Dalha, H. Graich, F. Amouch, K. Ouzaid, A. Moukale, S. Chadli. Antibacterial Activity of Essential Oils Extracts from Cinnamon, Thyme, Clove and Geranium Against a Gram Negative and Gram Positive Pathogenic Bacteria. Journal of Diseases and Medicinal Plants. Special Issue: New Vistas of Research in Ayurveda System of Medicine. Vol. 3, No. 2-1, 2017, pp. 1-5. doi: 10.11648/j.jdmp.s.2017030201.11

Received: November 28, 2016; Accepted: December 6, 2016; Published: January 6, 2017

Abstract: Essential oils and other extracts of plants have evoked have been screened for their potential uses as alternative remedies for the treatment of many infectious diseases. In this context, the aim of this study was to investigate the antibacterial activity of the essential oils from Cinnamon, Thyme, Clove and Geranium against four strains of Gram negative bacteria and two Gram positive bacteria. The in-vitro antimicrobial effects of these essential oils was determined by the disc diffusion method. The Minimum Inhibitory Concentration (MIC) was evaluated by using the broth serial dilution method and Minimum Bactericidal Concentration values (MBC) were defined as the lowest concentration of sample which resulted in ≥99.9% kill of the initial inoculum. The antibacterial effect was deemed bactericidal or bacteriostatic depending on the ratio: MB/CMI. Cinnamon possesses an important antimicrobial activity against all tested microbes, with the inhibition zones ranging from 26 to 32 mm. The essential oils of thyme and Clove showed the antibacterial activity with inhibition zones at 16–22 mm and 16–20 mm, respectively. However, the Geranium essential oil failed to inhibit any of the tested strains. Both gram-positive and gram-negative bacteria were resistant to this essential oil. Results according to the MICs and MBCs revealed that the essential oil from Cinnamon showed the most remarkable bactericidal effect. The essential oil from Cinnamon might be exploited as natural antibiotic for the treatment of several infectious diseases caused by the pathogens germs and conservation agents in the food.

Keywords: Pathogenic Bacteria, Antibacterial Activity, Essential Oils, Cinnamon, Thyme, Clove, Geranium

1. Introduction

Essential oils have been used medicinally in history. Medical applications proposed by those who sell medicinal oils range from skin treatments to remedies for cancer and often are based solely on historical accounts of use of essential oils for these purposes. Indeed, interest in essential oils has revived in recent decades with the popularity of aromatherapy, a branch of alternative medicine that claims that essential oils and other aromatic compounds have curative effects.

Emerging resistance of microorganisms to conventional chemicals and drugs has prompted scientists to search for novel sources of biocides with broad-spectrum activities [1]. The antimicrobial activity of Essential oils (EOs) has long been recognised and they have been extensively tested in vitro against a wide range of pathogenic bacteria and fungi [2]. Some oils have been used in cancer treatment [3]. Some other oils have been used in food preservation [4], aromatherapy [5] and fragrance industries [6].

The main constituents of essential oils –mono- and sesquiterpenes including carbohydrates, phenols, alcohols, ethers, aldehydes and ketones – are responsible for the biological activity of aromatic and medicinal plants as well as for their fragrance. The mechanism by which the essential oils exert their antimicrobial activity is poorly understood but the main target appears to be the cell membrane of bacterial cells [7].

Essential oils such as cinnamon, thyme, clove and geranium have been traditionally used by people for various purposes in different parts of the world. In this context, the aim of the current study was to investigate the in vitro activity of these essential oils against four strains of Gram negative bacteria and two strains of Gram positive bacteria.

2. Materials and Methods

2.1. Essential Oils

Four essential oils obtained from Morocco society phytonutrition (table 1). These oils were selected based on literature survey and their use in traditional medicine. Quality of the oils was ascertained to be more than 98% pure.

Table 1. Essential oils and their components.

2.2. Bacterial Strains and Medias

Four strains of Gram-negative bacteria [Escherichia coli (ATCC 25922), Klebsiella pneumoniae (ATCC 10031), Pseudomonas aeruginosa (ATCC 27853), Salmonelle spp] and two strains of Gram-positive bacteria [Streptocoque de groupe D and Staphylococcus aureus (ATCC 25923)] were used in this study. The cultures of bacteria were maintained in their appropriate agar slants at 4°C throughout the study and used as stock cultures. Mueller–Hinton agar (MHA) and Mueller–Hinton broth (MHB) were used in this study

3. Antimicrobial Activity Assay

3.1. Aromatogram Test

The disk diffusion method was used in the present study. An overnight culture for each microbial strain was adjusted to 0.5 McFarland standards (10⁸ CFU/ml). 500 μL of the suspension were spread over agar plates containing Mueller Hinton Agar (MHA).

Under aseptic conditions, empty sterilized discs (Whatman 6 mm in diameter) were impregnated with 10 μL of pure essential oil and placed on the agar surface. The inoculated plates were incubated at 37°C for 18-24h. Antimicrobial activity was evaluated by measuring the zone of inhibition (mm) against the test organisms. Each assay was repeated 2 times.

3.2. Minimum Inhibitory Concentration and Minimum Bactericidal Concentration

The Minimum Inhibitory Concentration (MIC) values were evaluated by using the broth serial dilution method. To obtain the highest concentration (80 mg/ml) to be tested, 400 μl of the essential oils used in the antimicrobial tests were placed in test tubes that contained 4.6 ml of MHB supplemented with Tween 80 (0.01% v/v). Serial dilutions of the high concentration were made in sterile test tubes contained (MHB + Tween 80 (0.01% v/v).to develop a concentration range from 0.3 to 80 mg/ml. After pre-culturing, microorganism suspensions (10⁸ CFU/ml) were inoculated into fresh broth MHB + Tween 80 (0.01% v/v) containing one EO. Following incubation at 37°C for 24 h, MIC values were determined as the lowest concentration of the essential oils at which the completely inhibited the visible growth of microorganisms in broth.

For the determination of the Minimum Bactericidal Concentration (MBC) values of the essential oils, a total of 20 μL from clear wells of the MICs test were plated on Mueller- Hinton agar (MHA). MBC values were defined as the lowest concentration of sample which resulted in ≥99.9% kill of the initial inoculum.

The antibacterial effect was deemed bactericidal or bacteriostatic depending on the ratio: CMB/CMI. Indeed, if CMB/MIC = 1-2, the effect is bactericidal and if CMB/CMI = 4-16, the effect is bacteriostatic [8].

4. Results

The antimicrobial activity of four essential oils against a range of six bacterial species is summarized in Table 2. These results relieved that the Cinnamon oil exhibit the higher activity antibacterial against all microorganisms tested, with inhibition zones ranging from 26 to 32 mm. The highest antibacterial activity showed in Pseudomonas aeruginosa (32 mm), and lowest inhibition effect observed in both Streptocoque group D and Salmonelle spp (26 mm).

Table 2. Antibacterial activity of the essential oils (10μl/disc.) against the bacterial strains tested using disc-diffusion method, inhibition zones in mm.

Depending on the susceptibility of the tested bacteria, Clove essential oil produced an inhibition zone varying from 16 to 20 mm, the lowest inhibitory zone was observed against

E. coli (16 mm) but the highest inhibitory zone was showed against Salmonelle ssp and Staphylocoque group D (20 mm), of same clove has no antibacterial effect on K. pneumoniae.

On the other hand, inhibition zone produced by Thyme essential oil varying from 16 to 22 mm. The minimal inhibition zone was observed against Staphylocoque group D (16 mm) whereas the maximal inhibition zone was showed against S. aureus (22 mm). This oil shows that the growth of both test organisms K. pneumoniae and Pseudomonas aeruginosa were not inhibited.

Results according to the MICs and MBCs of each essential oil against microbial strains studied are showed in Tables 3 and figure 1. In this study Cinnamon oil exhibited the antibacterial activity with MIC and MBC values of 2.5-5 mg/mL and 2.5-10 mg/mL respectively. The lower MIC was showed in Escherichia coli and Klebsiella pneumoniae but the higher MIC was observed in Salmonelle spp, Pseudomonas aeruginosa, Streptocoque group D and Staphylococcus aureus. On the other hand, the lowest MBC value was observed in Klebsiella pneumoniae and the highest MBC value was observed in Staphylococcus aureus.

Table 3. MIC and MBC values (MIC and MBC mg/mL), of selected essential oils against the bacterial strains tested.

The essential oil from Clove possessed MIC at 2.5-5 mg/ml. and MBC at 5–10 mg/ml. The lowest MIC and MBC are showed in Escherichia coli, Salmonelle spp and Streptocoque group D, but the higher MIC and MBC observed in Pseudomonas aeruginosa and Staphylococcus aureus.

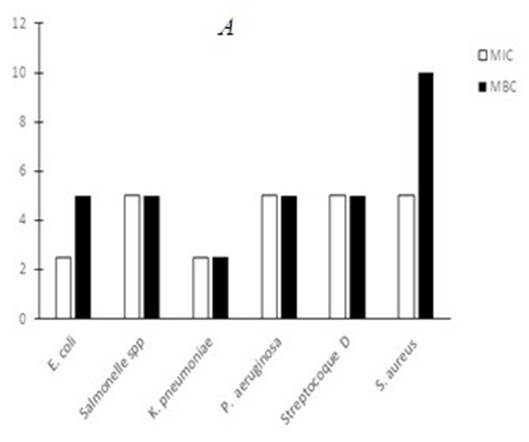

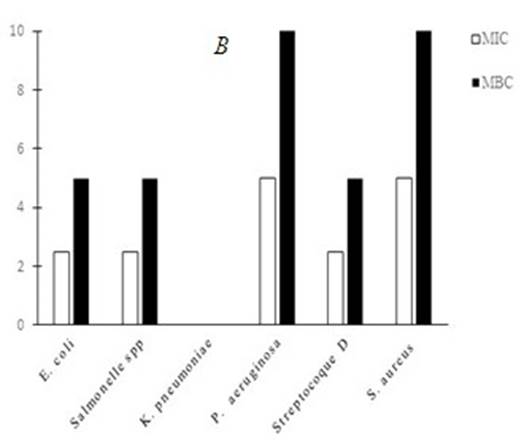

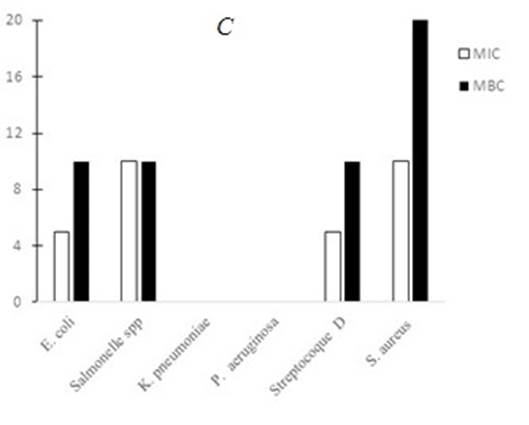

Figure 1. Minimum Inhibitory Concentration (MIC) and Minimum Bactericidal (MBC) Concentration of selected essential oils against the bacterial strains tested. A: Cinnamon B: Clove and C: Thyme.

Thyme oil possessed MIC in the range of 5-10 mg/mL, while its MBC was at 10-20 mg/ml. The maximal MIC value observed in Salmonelle spp and Staphylococcus aureus, but the minimal MIC value showed in Escherichia coli and Streptocoque group D. The lower MBC values found for Thyme essential oil showed in Escherichia coli, Salmonelle spp and Streptocoque group D, but the higher MBC values are showed in Staphylococcus aureus.

From the obtained ratio, MBC/MCI (Table 3), it can be noticed that the essential oils from Thyme and Clove showed bactericidal effect against bacterial species tested except K. pneumoniae and P. aeruginosa for Thyme. and K. pneumoniae for Clove. The essential oil from Cinnamon showed a bactericidal effect against both Gram-positive and Gram-negative bacteria,

5. Discussion

In vitro studies in this work showed that the essential oils from Cinnamon, Thyme and Clove exhibited the antibacterial activity against microbial strains studied, but their effectiveness varied. Numerous studies have been published on the antimicrobial activities of plant compounds against many different types of microbes, including food-borne pathogens [9,10].

Our results revealed that the essential oil of Geranium did not affect all bacterial species. Both Gram-positive and Gram-negative bacteria were resistant to this essential oil. The essential oils from Thyme and Clove showed the good antibacterial activity with inhibition zones at 16–22 mm and 16–20 mm, respectively. These results are in agreement with those reported by Lopez et al. [11] that Clove oil was found active against foodborne Gram-positive bacteria (Staphylococcus aureus, Bacillus cereus, Enterococcus faecalis and Listeria monocytogenes) and Gram-negative bacteria (E. coli, Yersinia enterocolitica, Salmonella choleraesuis and P. aeruginosa). Similarly, in another study Sabahat and Perween reported that Clove oil exhibited maximum activity against V. cholerae with 23.75 mm mean diameter of zone of inhibition [12]. Deise et al. [13] reported that the essential oil of thyme had better activity against E. coli.The antimicrobial activity of the thyme essential oil and of thymol has been evaluated in other studies. Ivanovic et al.[14] reported significant activity of the extract and essential oil of thyme against E. coli and Salmonella strains. It was also reported antimicrobial activity of the essential oil of thyme against E. coli 5% (V/V) and other food borne bacteria [15].

The cinnamon essential oil showed the strongest antibacterial activity against all the bacterial species tested. Results of the present study are in harmony to those carried out by [16], that Cinnamon oil exhibited strong activity against the selected bacterial strains.

Minimum inhibitory and bactericidal concentrations (MIC, MBC) for the three selected oils (Thyme, Clove and Cinnamon) ranged from 2.5 to 10 and 2.5 to 20 respectively. In particular, the essential oil of Cinnamon possesses an important antibacterial effect against both Gram-positive and Gram negative bacteria with MIC and MBC values of 2.5 to 5 and 2.5 to 10 mg/ml respectively. Smith-Palmer et al.[17] reported the reduction of L. monocytogenes from 6.0 log CFU/g to less than 1.0 log CFU/g in low and high fat cheese with low concentration of Clove essential oil.In the other hand, several studies have shown that Cinnamon, Clove and rosemary oils had strong and consistent inhibitory effects against various pathogens [18].

Many studies showed that the activity of the oils could be attributed, to characteristic of essential oils and their components is their hydrophobicity, which enable them to partition the lipids of the bacterial cell membrane, disturbing the cell structures and rendering them more permeable [19,20]. Extensive leakage from bacterial cells or the exit of critical molecules and ions will lead to death [21].

From this study it can be concluded that cinnamon oil has the most potential bactericidal properties. This essential oil might be exploited as natural antibiotic for the treatment of several infectious diseases caused by the pathogens germs. We believe that the present investigation together with previous studies provide support to the antibacterial properties of cinnamon.

References

1. Abad, MJ, Ansuategui M, Bermejo P. Active antifungal substances from natural sources. ARCHIVOC 2007; 2007, 116–145.
2. Kalemba D, Kunicka A. Antibacterial and antifungal properties of essential oils. Current Medicinal Chemistry, 2003; 10: 813–829.
3. Sylvestre M, Pichette A, Longtin A, Nagau F, Legault J. Essential oil analysis and anticancer activity of leaf essential oil of Croton flavens L. from Guadeloupe. J Ethnopharmacol 2006; 103:99-102.
4. Faid M, Bakhy K, Anchad M, Tantaoui-Elaraki A, Alomondpaste: Physicochemical and microbiological characterizations and preservation with sorbic acid and cinnamon. J Food Prod 1995; 58:547-550.
5. Buttner MP, Willeke K, Grinshpun SA: Sampling and analysis of airborne microorganisms. In Manual of Environmental Microbiology Edited by: Hurst CJ, Knudsen GR, McInerney MJ, Stetzenbach LD, Walter MV. ASM Press: Washington, DC; 1996:629-640.
6. Van de Braak SAAJ, Leijten GCJJ: Essential Oils and Oleoresins: A Survey in the Netherlands and other Major Markets in the European Union. CBI, Centre for the Promotion of Imports from Developing Countries, Rotterdam. 1999:116.
7. Di Pasqua R, Betts G, Hoskins N, Edwards M, Ercolini D, Mauriello G. Membrane toxicity of antimicrobial compounds from essential oils. Journal of Agricultural and Food Chemistry 2007; 55, 4863–4870.
8. Berche P, Gaillard J L, Simonet M. Les bactéries des infections humaines.Éditeur: Flammarion, Médecine & Sciences. 1991: 660 p.
9. Friedman M, Henika RP, Mandrell ER. Bactericidal activities of plant essential oils and some of their isolated constituents against Campylobacter jejuni, Escherichia coli, Listeria monocytogenes, and Salmonella enterica. J. Food Protect. 2002; 65:1545-1560.
10. Tassou CC, Drosinos HE, Nychas JG. Effects of essential oil from mint (Mentha piperita) on Salmonella enteritidis and Listeria monocytogenes in model food system at 4 degrees and 10 degrees C. J. Appl. Bacteriol. 1995; 78:593-600.
11. Lopez P, Sanchez, Batlle R, Nerin C. Solid- and Vapor-phase antimicrobial activities of six essential oils: susceptibility of selected food borne bacterial and fungal strains. J. Agric. Food Chem., 2005; 53 (17): 6939-6946.
12. Sabahat S, Perween T. In vitro antibacterial activity of Clove against Gram negative bacterial Pak. J. Bot. 2008; 40(5): 2157-2160.
13. Deise FS, Francielli PKJ, Régis A Z, Karine B S, Andressa F, Leadir LM F. Antimicrobial Activity of the Essential Oil of Thyme and of Thymol against Escherichia coli Strains.Acta Scientiae Veterinariae. 2014; 42: 1234.
14. Ivanovic J, Misic D, Zizovic I, Ristic M.In vitrocontrol of multiplication of some food-associated bacteria by thyme, rosemary and sage isolates. Food Control. 2012; 25(1): 110-116.
15. Silva N, Alves S, Gonçalves A, Amaral JS, Poeta P.Antimicrobial activity of essential oils from Mediterranean aromatic plants against several foodborne and spoilage bacteria. Food Science and Technology International. 2013; 19(6): 503-510.
16. Seenivasan rabuseenivasan, Manickkam Jayakumar and Savarimuthu Ignacimuthu. In vitro antibacterial activity of some plant essential oils. BMC Complementary and Alternative Medicine, 2006; 6:39.
17. Smith-Palmer A, Stewart J, Fyee L. The potential application of plant essential oils as natural food preservation in soft cheese. Food Microbiol 2001; 18: 463-70.
18. Matan N, Rimkeeree H, Mawson AJ, Chompreeda P, Haruthaithanasan V, Parker M: Antimicrobial activity of cinnamon and clove oils under modified atmosphere conditions. Int J Food Microbiol 2006; 107:180-185.
19. Knobloch K, Weigand H, Weis N, Schwarm H-M, Vigenschow H: Action of terpenoids on energy metabolism. In Progress inEssential Oil Research: 16th International Symposium on Essential OilsEdited by: Brunke EJ. De Gruyter, Berlin; 1986; 429-445.
20. Sikkema J, De Bont JAM, Poolman B: Interactions of cyclic hydrocarbons with biological membranes. J Biol Chem 1994; 269:8022-8028.
21. Denyer SP, Hugo WB. Biocide-induced damage to the bacterial cytoplasmic membrane. In Mechanisms of Action of Chemical Biocides Edited by: Denyer SP, Hugo WB. The Society for Applied Bacteriology, Technical Series No 27. Oxford Blackwell Scientific Publication, Oxford; 1991; 171-188.
